the Parallel cable for the Bascom Program
By Kevin Custer W3KKC
The parallel cable used with the Bascom program is made from a 10 postion double row connector that has the same pin spacing as an IDE hard drive cable. In fact, and old IDE cable can be used to make this cable by sawing off the IDE connector so 10 pins (2 rows of 5) are acquired.

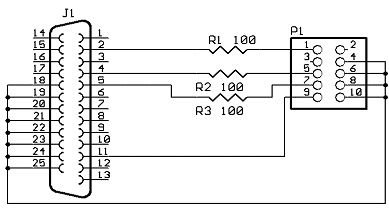

Here is a picture to help with the construction of the parallel cable.
Image Copyright 2004 Arcom Communications.
Last updated October 23, 2004
