A PL / CG / CTCSS Filter Construction Article
By Kevin Custer   W3KKC

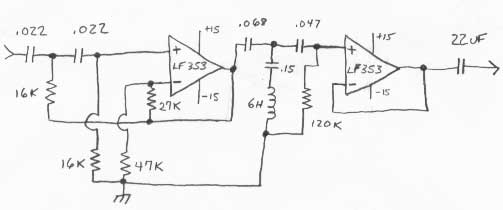

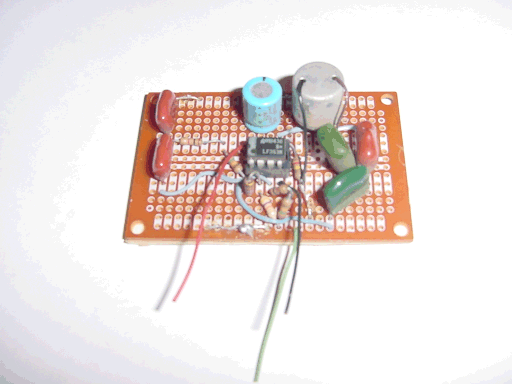

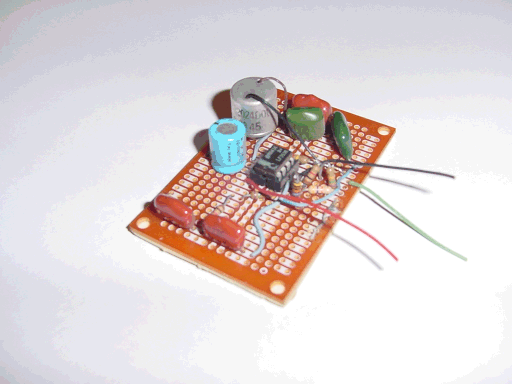

My PL Filter utilizes an op-amp and capacitor/inductor elements to provide a nice response. The 6 henry choke is the round grey component at the top of the circuit board. It can be salvaged from an old Motorola Motrac receiver.
