RB_STM32_DVM
For the Motorola MTR2000 Repeater
Orders are processed and shipped in chronological order. First in - First out.
You will get a shipping notification from the USPS with a tracking number when your order ships.
THANK YOU for your understanding and continued patronage.
V1&V2 boards:
Digital Mobile Radio (DMR) - D-Star
Yeasu System Fusion (YSF) - P25 - NXDN
The V3 board adds a LED for the "FM" analog controller mode.
(NOTE: Analog FM "revert" is better supported using the MTR's internal controller.)
STM32_MTR2k Installation/Configuration
v2 Schematic and Layout
v3 Schematic and Layout
Click here for an article describing how to update the firmware to V.1.6+ (adds AllStar FM linking)
***Requires an update to Pi-Star as well. Please read the article entirely.***

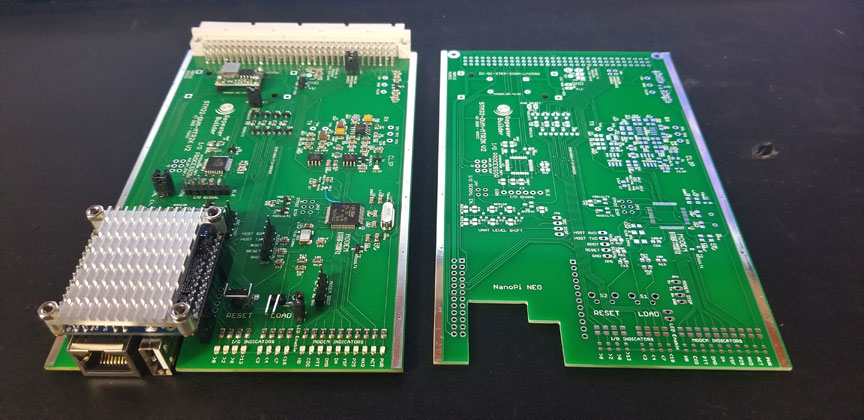

The RB_STM32_DVM_MTR2k is a version of our popular STM32_DVM modem that is custom designed to work with the Motorola MTR2000 repeater. Includes in addition to the features of the "standard" STM32_DVM, it adds additional GPIO, wildcard "faker", and additional serial port I/O communications. This version also includes a NanoPi single-board computer. There is no need for a separate platform running MMDVMHost. The STM32_DVM_Mtr2k is a complete ready-to run solution that simply plugs into the middle card slot of your MTR2000 repeater.
|
|
 STM32_DVM_MTR2k:Special Limited Time Price - $225 This card is customized to be plug-and-play with a Motorola MTR200 repeater. (VHF or UHF) It makes for a nice, neat compact package. |
 |

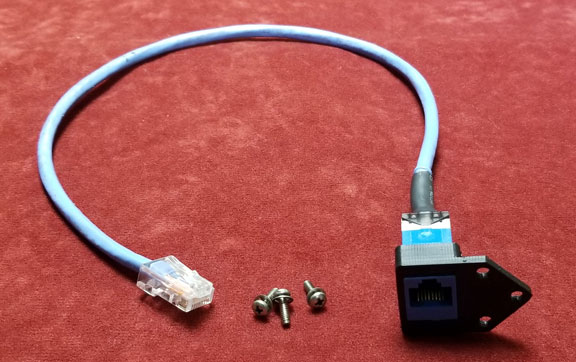

MTR2k Ethernet Extension: Special Limited Time Price - $25 This cable routes the front Ethernet connector of the NanoPi to the rear of the station. It includes a mounting bracket that holds the female Ethernet connector to the rear of the station and (3) mounting screws. Uses KS-DMR's STL |
 |
Special Limited Time Price - $45 Clips to the front grill, no holes required!
Special Limited Time Price - $60 This is the correct Nextion display (3.2") for the 3D printed bezel above. HMI file for this display: Blue_Duplex_32in.HMI 3.5" Nextion Bezel:
Special Limited Time Price - $45 Clips to the front grill, no holes required! 3.5" Nextion display for above:
This is the correct Nextion display (3.5") for the 3D printed bezel above. HMI file for this display: Blue_Duplex_35in.HMI
The Screens are pre-loaded with modified HMI files from this overlay and have "pre-canned" frequencies. If you want the frequency to be correct on your display, you will need to edit the overlay (above) using the Nextion Editor then load it to the display. |
All of our products come with courteous and friendly customer service. While product documentation is continuously under development, the user manuals for these products will follow in the same lines as the rest of the RB products in being straight forward and thorough.
My hope is that these products help more people get started with the new and expanding digital modes and their advanced capabilities.
Ordering information:
Secure PayPal Ordering - Use the "Add to Cart" buttons above to make your selections.Quantity can be changed at PayPal after adding an item to the cart.
More than one item may be added to the cart/order to save shipping costs.
Shipping is calculated by PayPal during the checkout process.
Two shipping options are available: Ground and Priority. (Priority Mail is more expensive, but quicker.)
We are NOT responsible for lost or stolen packages.
All shipments are shipped via USPS with a tracking number to the address provided by PayPal.
We have no control over your package once it is placed in the USPS outgoing mail slot.
For more information, Please contact Scott either via e-mail or by phone (814) 444-9460 during reasonable hours EST.
